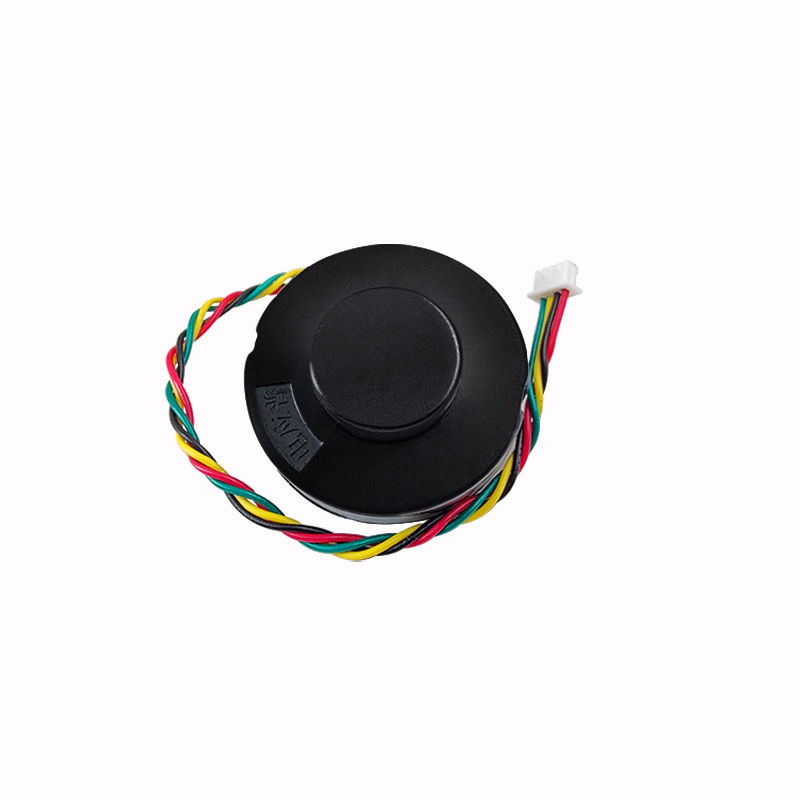

DYP-L06 Gas tank (LPG) level measuring sensor

Short Description:

L06-liquefied gas level sensor a  non-contact liquid level measurement instrument.   Don’t need to drill a hole in the gas tank.  Easily measure the remaining level height or volume by sticking the sensor to the bottom of the gas tank.


Product Detail

Features

Specs

Part Numbers

Documentation

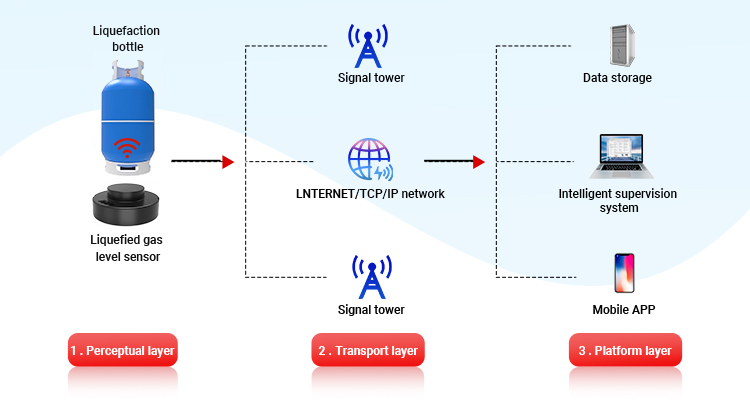

L06-liquefied gas level sensor is a sensor that uses high-frequency ultrasonic detection technology to measure the liquid level of liquefied gas without contact For non-contact measurement, user equipment can connect to the sensor through NB-lot, HTTP, LoRaWAN and other methods to upload data to the platform, which can remotely monitor the usage of liquefied gas.

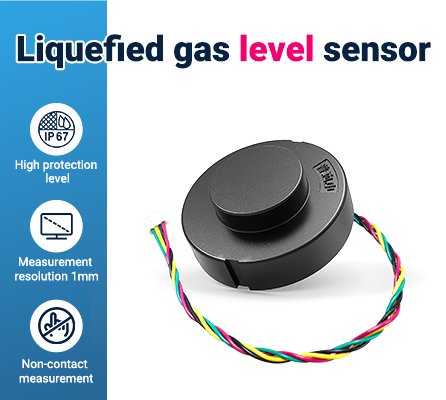

L06 Gas tank (LPG) level measuring sensor

• Small blind spot
• Support baud rate modification
• Intelligently judge the success of the installation, and adjust the adaptive media to the best state
• High protection level
• Wide operating temperature
• Strong anti-static

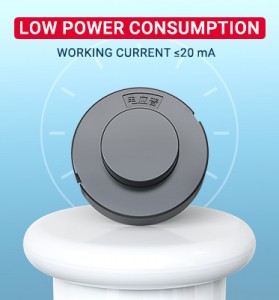

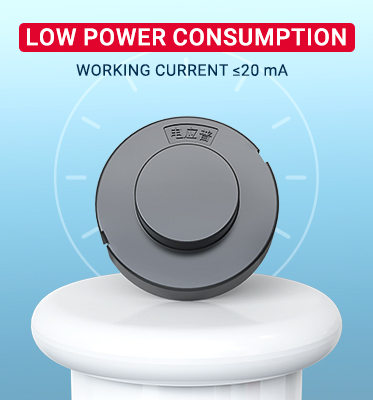

• Standby ultra-low power consumption
• With temperature compensation, high measurement accuracy
• Stable and reliable measurement data

L06 Gas tank level measuring sensor

•3.3V~5V working voltage
•Sleep current is less than 15uA
•3cm standard blind spot
•Detection of liquid level range 3~100cm
•The default baud rate is 115200, which can be modified to 4800, 9600, 14400, 19200, 38400,57600, 76800
•Measuring resolution 1mm
•Measurement accuracy +(5+S*1%)mm (S is the measured value)
•Support horizontal tilt detection, range 0~180°

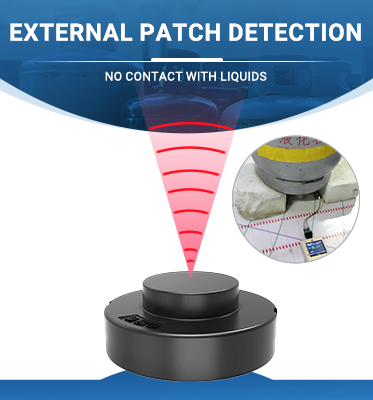

•Non-contact level measurement, safe
•Full-scale real-time tracking, no need to restart empty container
•Working temperature -15°C to +60°C
•Storage temperature -25°C to +70°C
•Dustproof and waterproof industrial design, protection grade IP67

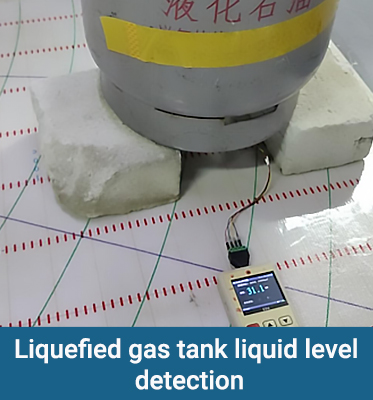

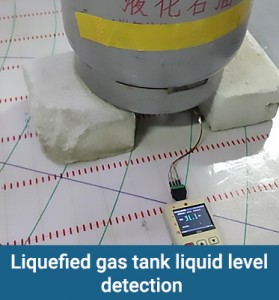

Recommended for Level detection of liquefied gas in iron tank and fiberglass tank, etc



S/N L06 series output method remark
1 DYP-L062MTW-V1.0 UART Control output
2 DYP-L062MCW-V1.0 IIC
